Project Ronin - Proffie Chassis STL File

USD35

This is a set of STL files for the Project Ronin Chassis.

The chassis has 4 parts.

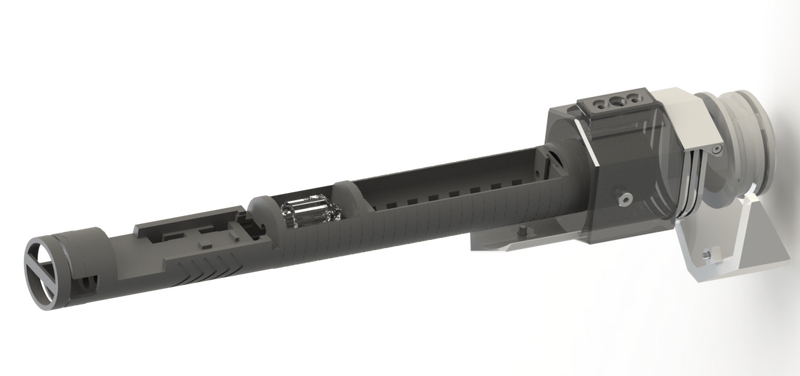

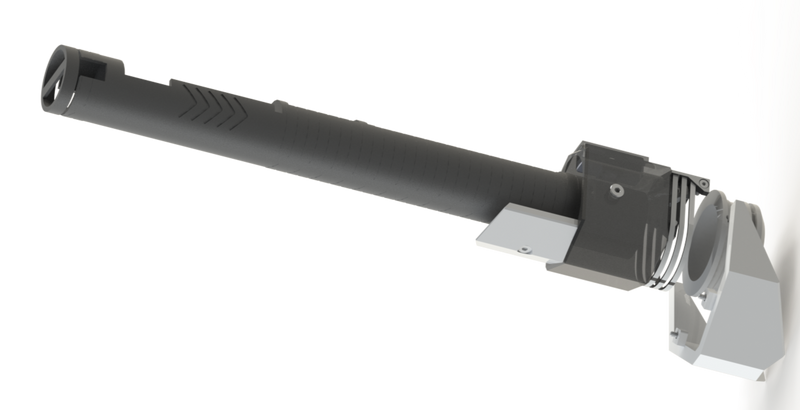

1. Main chassis:

Designed to hold proffie v2.2 boards. 18650 protected li-ion battery, removeable battery system via two keystone battery tabs and a 24mm base speaker.

It also holds a shtok 6pole (long pin) chassis connector to mate with the pixel adaptor above enabling a fully removeable chassis core.

Best to be printed in SLA/MSLA/DLP resin technology however, it's possible to print in FDM. But the support removal in wire channels would be a little tough.

2. Fixed pixel adaptor.

Designed to hold a Shtock pixel adaptor, and the no pin side of the 6 pole chassis adaptor PCB. This is secured in place in the hilt and also is to be wired to the two switches on the hilt.



3. Speaker Face Adaptor.

Designed to attach to a 24mm bass speaker, contacting the pommel of the hilt and applying pressure to the pixel pins without smothering the sound output.



4. Crystal.

Designed to attach to the main chassis, and hold a 5mm led, RGB or otherwise.

Best to be printed in SLA/MSLA/DLP resin technology for the translucent effect. However, it's possible to print in FDM.



This is a licence for a single PERSONAL use. It is not intended for commercial applications (please contact me to discuss if this is your intention). You are not permitted to sell the STL in it's current form, or modify and sell.

Given the item is an instant delivery digital file - all sales are final and refunds are not possible given the nature of the product.
